[ADMIN] NETMGR을 통한 Listener 수동 설정

테스트환경

OS	Centos 7.9 (Virtual Box 7.0)
DB	11.2.0.4



수동설정이유

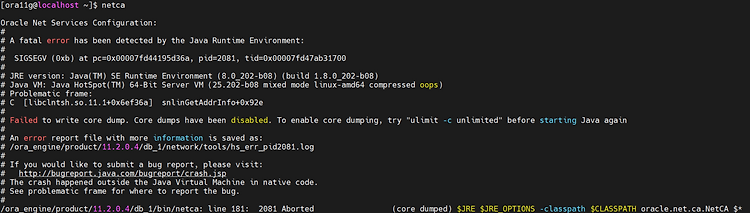

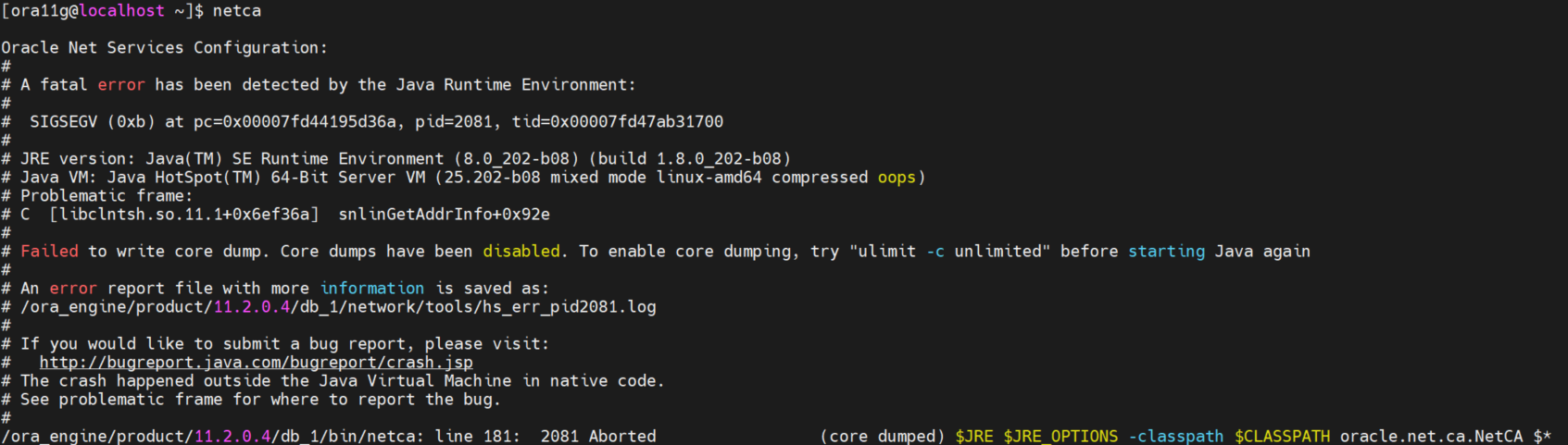

> netca 구동시, 메모리 주소값을 찾지 못하는 에러가 발생하여 vm문제가 있어 수동으로 설치 진행

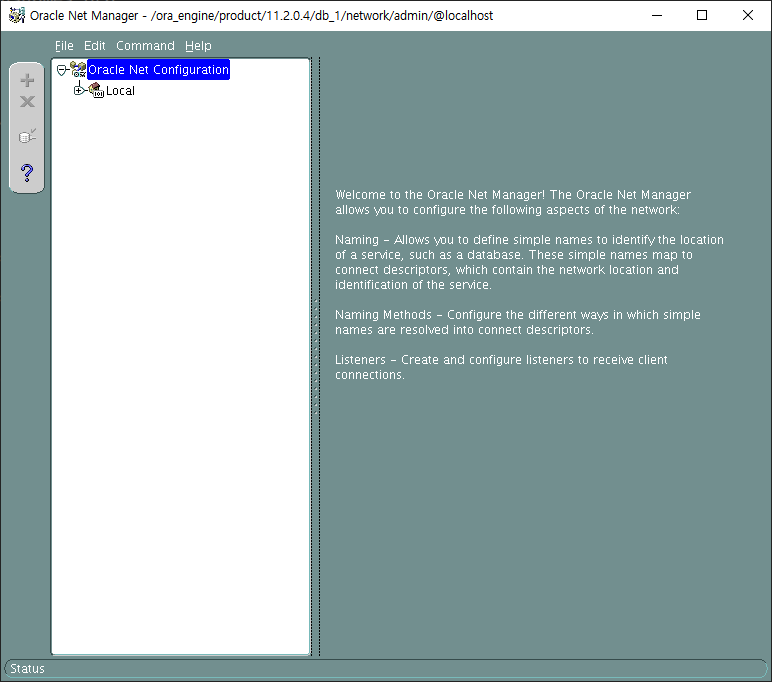

NETMGR

[ora11g@localhost ~]$ netmgr





1. 로컬 리스너 선택 후 + 버튼을 통해 추가



2. 사용할 리스너 이름 지정
    (LISTENER => DB11G)



3. 수신중인 위치(Listening Locations)로 선택 후 주소 추가

    - Host이름과 포트 번호를 지정해주고 프로토콜 TCP/IP로 설정



4. Database Service

- 전역 데이터베이스 이름과 SID, Oracle 홈 디렉토리 지정

- Global Database Name : SID와 동일하나 다를 수도 있다. 통상적으로 하나의 시스템에서 하나의 서비스를 제공함으로 편의성이 생기게된다.

- OracleHome : 오라클 설치 전 환경변수 설정을 통해 지정하였을 경우 자동 입력

- SID : 한 서버에서 여러 개의 인스턴스가 기동 될 수 있어서 지정 필요



tnsnames.ora 설정

[ora11g@localhost admin]$ pwd
/ora_engine/product/11.2.0.4/db_1/network/admin

[ora11g@localhost admin]$ vi tnsnames.ora

DB11G=
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.56.111)(PORT = 2525))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = DB11G)
    )
  )



Listener 최종 확인

- listener.ora 확인

[ora11g@localhost admin]$ pwd
/ora_engine/product/11.2.0.4/db_1/network/admin

[ora11g@localhost admin]$ vi listener.ora
# listener.ora Network Configuration File: /ora_engine/product/11.2.0.4/db_1/network/admin/listener.ora
# Generated by Oracle configuration tools.

# copyright (c) 1997 by the Oracle Corporation
#
# NAME
#   listener.ora
# FUNCTION
#   Network Listener startup parameter file example
# NOTES
#   This file contains all the parameters for listener.ora,
#   and could be used to configure the listener by uncommenting
#   and changing values.  Multiple listeners can be configured
#   in one listener.ora, so listener.ora parameters take the form
#   of SID_LIST_<lsnr>, where <lsnr> is the name of the listener
#   this parameter refers to.  All parameters and values are
#   case-insensitive.
# <lsnr>
#   This parameter specifies both the name of the listener, and
#   it listening address(es). Other parameters for this listener
#   us this name in place of <lsnr>.  When not specified,
#   the name for <lsnr> defaults to "LISTENER", with the default
#   address value as shown below.
#
# SID_LIST_<lsnr>
#   List of services the listener knows about and can connect
#   clients to.  There is no default.  See the Net8 Administrator's
#   Guide for more information.
#
# PASSWORDS_<lsnr>
#   Specifies a password to authenticate stopping the listener.
#   Both encrypted and plain-text values can be set.  Encrypted passwords
#   can be set and stored using lsnrctl.
#     LSNRCTL> change_password
#       Will prompt for old and new passwords, and use encryption both
#       to match the old password and to set the new one.
#     LSNRCTL> set password
#       Will prompt for the new password, for authentication with
#       the listener. The password must be set before running the next
#       command.
#     LSNRCTL> save_config
#       Will save the changed password to listener.ora. These last two
#       steps are not necessary if SAVE_CONFIG_ON_STOP_<lsnr> is ON.
#       See below.
#
# Default: NONE
#
# PASSWORDS_LISTENER = 20A22647832FB454      # "foobar"
# SAVE_CONFIG_ON_STOP_<lsnr>
#   Tells the listener to save configuration changes to listener.ora when
#   it shuts down.  Changed parameter values will be written to the file,
#   while preserving formatting and comments.
# Default: OFF
# Values: ON/OFF
#
# SAVE_CONFIG_ON_STOP_LISTENER = ON
# USE_PLUG_AND_PLAY_<lsnr>
#   Tells the listener to contact an Onames server and register itself
#   and its services with Onames.
# Values: ON/OFF
# Default: OFF
#
# USE_PLUG_AND_PLAY_LISTENER = ON
# LOG_FILE_<lsnr>
#   Sets the name of the listener's log file.  The .log extension
#   is added automatically.
# Default=<lsnr>
#
# LOG_FILE_LISTENER = lsnr
# LOG_DIRECTORY_<lsnr>
#   Sets the directory for the listener's log file.
# Default: <oracle_home>/network/log
#
# LOG_DIRECTORY_LISTENER = /private/app/oracle/product/8.0.3/network/log
# TRACE_LEVEL_<lsnr>
#   Specifies desired tracing level.
# Default: OFF
# Values: OFF/USER/ADMIN/SUPPORT/0-16
#
# TRACE_LEVEL_LISTENER = SUPPORT
# TRACE_FILE_<lsnr>
#   Sets the name of the listener's trace file. The .trc extension
#   is added automatically.
# Default: <lsnr>
#
# TRACE_FILE_LISTENER = lsnr
# TRACE_DIRECTORY_<lsnr>
#   Sets the directory for the listener's trace file.
# Default: <oracle_home>/network/trace
#
# TRACE_DIRECTORY_LISTENER=/private/app/oracle/product/8.0.3/network/trace
# CONNECT_TIMEOUT_<lsnr>
#   Sets the number of seconds that the listener waits to get a
#   valid database query after it has been started.
# Default: 10
#
# CONNECT_TIMEOUT_LISTENER=10

DB11G =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.56.111)(PORT = 2525))
  )

SID_LIST_DB11G =
  (SID_LIST =
    (SID_DESC =
      (ORACLE_HOME = /ora_engine/product/11.2.0.4/db_1)
      (SID_NAME = ORA11G)
    )
  )

ADR_BASE_DB11G = /ora_engine



- listener 기동

[ora11g@localhost admin]$ lsnrctl start DB11G

LSNRCTL for Linux: Version 11.2.0.4.0 - Production on 02-FEB-2023 10:59:07

Copyright (c) 1991, 2013, Oracle.  All rights reserved.

Starting /ora_engine/product/11.2.0.4/db_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 11.2.0.4.0 - Production
System parameter file is /ora_engine/product/11.2.0.4/db_1/network/admin/listener.ora
Log messages written to /ora_engine/diag/tnslsnr/localhost/db11g/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.56.111)(PORT=2525)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=192.168.56.111)(PORT=2525)))
STATUS of the LISTENER
------------------------
Alias                     DB11G
Version                   TNSLSNR for Linux: Version 11.2.0.4.0 - Production
Start Date                02-FEB-2023 10:59:07
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /ora_engine/product/11.2.0.4/db_1/network/admin/listener.ora
Listener Log File         /ora_engine/diag/tnslsnr/localhost/db11g/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.56.111)(PORT=2525)))
Services Summary...
Service "ORA11G" has 1 instance(s).
  Instance "ORA11G", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully

[ora11g@localhost admin]$ lsnrctl status DB11G

LSNRCTL for Linux: Version 11.2.0.4.0 - Production on 02-FEB-2023 10:59:10

Copyright (c) 1991, 2013, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=192.168.56.111)(PORT=2525)))
STATUS of the LISTENER
------------------------
Alias                     DB11G
Version                   TNSLSNR for Linux: Version 11.2.0.4.0 - Production
Start Date                02-FEB-2023 10:59:07
Uptime                    0 days 0 hr. 0 min. 2 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /ora_engine/product/11.2.0.4/db_1/network/admin/listener.ora
Listener Log File         /ora_engine/diag/tnslsnr/localhost/db11g/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.56.111)(PORT=2525)))
Services Summary...
Service "ORA11G" has 1 instance(s).
  Instance "ORA11G", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully
